API 11B Polished Rod Clamp for Oilfield Pumping Unit with One Bolt Two Bolts or Three Bolts

Model Number : Single bolt, double bolts, three bolts

Certification : API 11B

Place of Origin : China

MOQ : 10 pcs

Price : USD40-100/pc

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1000 pieces per month

Delivery Time : 7-25 days

Packaging Details : Export wooden case

Product Name : API 11B Polished Rod Clamp for Oilfield Pumping Unit with One Bolt Two Bolts or Three Bolts

Keywords : Polished Rod Clamps

Application : Oil Production

Polished rod diameter : 1",1 1/8", 1 1/4", 1 1/2"

Processing Type : Forging

Color : Red, blue or as customer requirement

Contact Now

API 11B Polished Rod Clamp for Oilfield Pumping Unit with One Bolt Two Bolts or Three Bolts

Thank you for choosing our no-dent standard polished rod clamp.

The product is manufactured strictly in accordance with Oil and Gas Industry Standard of People's Republic of China SY/T5029.The standard is equal to international standard ISD 10428 and API Spec 11B.

No-dent standard polished rod clamp is suitable for the standard polished rods that the nominal diameters are 25.4mm,28.6mm,31.8mm and 38.1mm,the dimension accuracy is D(+0--0.25). The nominal working load is designed as standard polished rod accuracy after strict test.

On customer's request,we can produce no-dent polished rod clamp that the nominal diameter and dimension accuracy are not standard.The polished rod clamp is strictly tested as standard and the working load is reliable and has no harm to polished rod.

Each polished rod end surface has adapted polished rod nominal diameter and working load. Please install as instruction.The following technical parameters of no-dent polished rod clamp are for reference.

Specifications:

WL12000	Polished Rod Diameter	Working load	Tightening Torque	Weight
	22mm	78.5KN	3200N.m	5.6Kg
	25mm	100KN		5.5Kg
	25.4mm (1in)	100KN		5.5Kg
	28.6mm (1 1/8in)	118KN		5.5Kg
WL16000	Polished Rod Diameter	Working load	Tightening Torque	Weight
	25.4mm (1 in)	118KN	1545N.m	7.3 Kg
	28mm	157KN		7.2 Kg
	28.6mm (1 1/8in)	157KN		7.2 Kg
	31.8mm (1 1/4in)	157KN		7.1 Kg
	32mm	157KN		7.1 Kg
	38.1mm (1 1/2in)	178KN		9 Kg
WL18100	Polished Rod Diameter	Working load	Tightening Torque	Weight
	31.8mm (1 1/4in)	178 KN	1977N.m	10.35Kg
	32mm	178 KN		10.35Kg
	38.1mm (1 1/2in)	178 KN		10.2Kg

API 11B Polished Rod Clamp for Oilfield Pumping Unit with One Bolt Two Bolts or Three Bolts

If any needs, pls contact us freely:

Dongying OilMan Machinery Equipment Co.

Address: North Two Road, Dongying City, Shandong Province, China.

Mob/whats app/we chat:+86 13475294399

*Email: christal@oilmancn.com

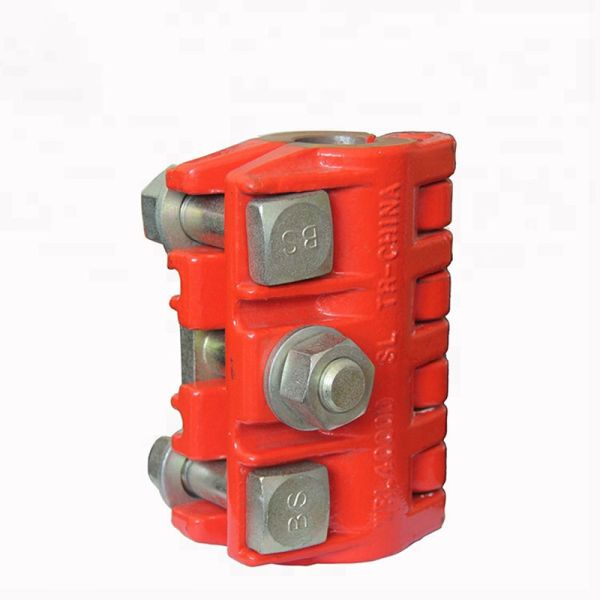

API 11B Polished Rod Clamp for Oilfield Pumping Unit with One Bolt Two Bolts or Three Bolts Images
